Relays
Relays come into different types. We are mostly using electromechanical and reed relays in the Studio.
Links and components
- 5V reed relay SIL05-1A72-71D
- Datasheet: https://docs.rs-online.com/82fc/0900766b8003309b.pdf
- RS online: https://se.rs-online.com/web/p/tungelementrelaer/3492884P
Activate a relay using 3.3V operating voltage microcontrollers

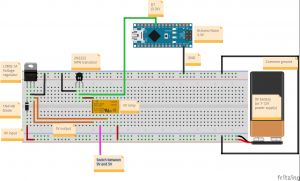

The circuit below uses an electromechanical (E/M) relay to switch between 5V and 9V operating voltages. It is unlikely you are going to need to switch between 5V and 9V in your designs, but the choice here, indicates the SPDT functionality of a common E/M relay.
We use a common 5V voltage regulator (7805) to drop the 9V of the battery to 5V, as required to operate the relay. The 2N2222 NPN transistor is activating the relay using an Arduino Nano, with operating voltage 3.3V.
